Abstract

Helios19 is a high-efficiency solar concentrator that uses 19 reflective mirrors in hexagon shape to direct sunlight onto a high-performance solar receiver. The system integrates dual-axis sun-tracking powered by 4 light sensors and a microcontroller to optimize solar capture.

The receiver consists of a multi-junction solar cell and a copper thermal absorber, enabling both electricity generation and heat collection. This hybrid approach maximizes energy efficiency, making Helios19 suitable for off-grid applications, industrial energy systems, and solar farms.

Helios19 is designed to outperform traditional photovoltaic panels by significantly increasing solar input while maintaining efficient thermal management. The system is modular, scalable, and designed for both small-scale and large-scale renewable energy solutions.

Introduction

The need for high-efficiency solar energy systems has grown as industries and governments push for greater sustainability. Traditional silicon solar panels suffer from limited efficiency (15-25%) and cannot fully utilize the available solar spectrum.

Helios19 overcomes these limitations by using Concentrated Solar Power (CSP), where 19 precision-aligned mirrors direct sunlight to a high-performance receiver, significantly increasing power output per square meter.

This project leverages:

High-Concentration Photovoltaics (HCPV) using multi-junction solar cells (40-50% efficiency).
Thermal Energy Recovery via a copper-based heat absorber, improving energy utilization.
Automated Sun Tracking using a low-cost, microcontroller-driven dual-axis tracking system.

System Design

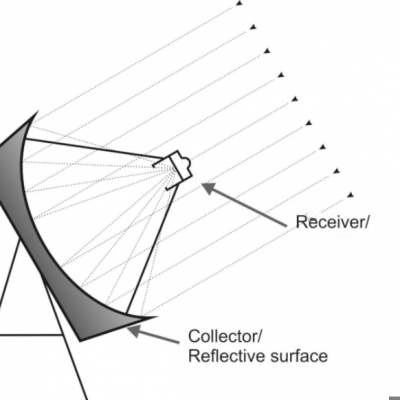

Parabolic Reflector & Mirror Configuration

Helios19 uses 19 individual mirrors, each flat but arranged in a parabolic structure, ensuring maximum sunlight redirection onto the receiver. The mirrors are 90% reflective (silver-coated or aluminum-based).

Solar Receiver

The focal point of the concentrator features:

Multi-Junction High-Concentration Solar Cell (HCPV)
- Handles up to 500× concentrated sunlight without overheating.
- Converts 40-50% of received solar energy into electricity.
Copper Thermal Absorber with Selective Coating
- Treated with Liver of Sulfur for maximum heat absorption.
- Transfers excess heat into a water-based heat exchanger for thermal energy storage.

Tracking System

Microcontroller-Based Dual-Axis Tracking (No AI Required)
4 Light Sensors (Photodiodes) Adjust Mirror Alignment
Energy-Efficient Stepper Motors for Position Correction
Real-Time Calibration for Maximum Sunlight Capture

Production Calculations

Solar Concentration Factor

Each mirror redirects additional sunlight to the receiver area (0.09 m² or 30 cm × 30 cm). With 19 mirrors, the total solar input is calculated as follows:

Effective Solar Power=1000W/m2×0.09m2×19×0.90\text{Effective Solar Power} = 1000 W/m^2 \times 0.09 m^2 \times 19 \times 0.90 =1539W(1.54kW)= 1539 W (1.54 kW)

Electrical Output (Photovoltaic Conversion)

The solar cell converts 40-50% of received power into usable electricity:

Solar Cell Efficiency	Total Power Output (W)
40%	616 W
50%	770 W

Heat Generation (Thermal Conversion)

The remaining 50-60% of input energy is converted into heat:

Heat Energy=1.54kW×(1−Solar Efficiency)\text{Heat Energy} = 1.54 kW \times (1 - \text{Solar Efficiency})

Efficiency	Thermal Output (W)
40% Electrical Efficiency	924 W
50% Electrical Efficiency	770 W

Energy Production Over Time

With 5 hours of sunlight per day, the daily, monthly, and yearly energy production is:

Efficiency	Daily Output (kWh)	Monthly Output (kWh)	Yearly Output (kWh)
40%	3.08 kWh	92.4 kWh	1124 kWh
50%	3.85 kWh	115.5 kWh	1405 kWh

Power Utilization & Applications

What Can Be Powered with 3 kWh Daily Output?

Device	Power Consumption (W)	Runtime per Day (3 kWh)
Laptop (50W)	50W	60 hours (~2.5 days)
LED Light (10W)	10W	300 hours (~12.5 days)
WiFi Router (10W)	10W	300 hours (~12.5 days)
Refrigerator (150W avg.)	150W	20 hours (~0.83 days)
EV Charging (500Wh per charge)	500Wh	6 full charges

Cost & Investment Requirements

Manufacturing Costs

Component	Estimated Cost (USD)
Solar Receiver (HCPV Cell + Copper Absorber)	$300
19 High-Reflectivity Mirrors hexagon shape 30cm	$200
Microcontroller & Tracking System	$50
Mounting & Frame Materials	$150
Cooling System & Heat Recovery	$100
Total Estimated Cost per Unit	$800

Competitor Analysis

Similar high-concentration solar tracking systems, such as Solartron Energy's HCPV Solar Concentrator and Heliosync's Optical Sun Tracking CSP, appear to be developed already. However, specific pricing and further commercial details are not readily available. The lack of transparent cost structures suggests that these technologies may still be in limited deployment or primarily targeted toward large-scale industrial applications rather than widespread commercial use.

Key Competitors

Company/Product	Technology Type	Efficiency	Tracking System	Thermal Recovery	Scalability	Estimated Cost
Helios19 (Proposed System)	HCPV + Thermal Hybrid	40-50% electrical, 50-60% thermal	Microcontroller & Sensor-Based	Yes (Copper Absorber + Water Cooling)	Modular & Scalable	~$850 per unit
Solartron Energy HCPV Solar	HCPV Parabolic Dish	35-42% electrical	AI-Based Tracking	Limited thermal utilization	Industrial Scale	unknown

Competitive Advantage

- Higher efficiency than traditional solar panels.

- Dual power generation: Electricity + Heat Recovery.

- Modular & scalable for residential, industrial, and off-grid applications.

- Lower cost tracking system (ldr sensors & microcontroller instead).

- Sustainable & renewable: Zero CO₂ emissions, minimal environmental impact.

Conclusion

Helios19 is a next-generation concentrated solar energy system that combines high-performance photovoltaics with efficient heat recovery. Using simple but effective sun-tracking, it offers a cost-effective solution for maximizing solar energy capture.

This system is positioned for large-scale adoption in off-grid power solutions, solar farms, and industrial applications. With the right investment, Helios19 can redefine solar energy efficiency.
